Framework EDI Reference. Encoding Mechanism
Hexadecimal

The Hexadecimal filter converts an 8-bit binary value to its 2 character hexadecimal string representation.  The hexadecimal character set consists of all hexadecimal characters representing their decimal value equivalent of numbers from zero to fifteen (0 - 15).  All numbers from 0 to 15 are in 4 bits, and therefore a hexadecimal character can only represent any 4 bit decimal value.

Decimal Binary Hexadecimal Character
00 0 0 0 0 0x0 0
01 0 0 0 1 0x1 1
02 0 0 1 0 0x2 2
03 0 0 1 1 0x3 3
04 0 1 0 0 0x4 4
05 0 1 0 1 0x5 5
06 0 1 1 0 0x6 6
07 0 1 1 1 0x7 7
08 1 0 0 0 0x8 8
09 1 0 0 1 0x9 9
10 1 0 1 0 0xA A
11 1 0 1 1 0xB B
12 1 1 0 0 0xC C
13 1 1 0 1 0xD D
14 1 1 1 0 0xE E
15 1 1 1 1 0xF F

The conversion of an 8-bit byte proceeds as follows:

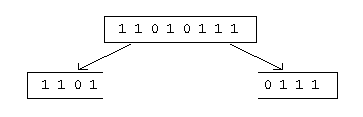

  1. Split the 8-bit byte into two 4-bit values.

    Example.  The 8-bit byte "11010111" is split into "1101" and "0111".

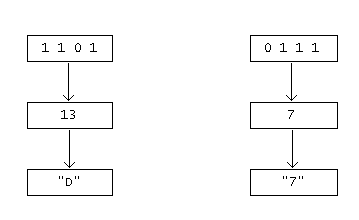

  2. Convert each 4-bit value to their hexadecimal character.

    Example.  The "1101" value is decimal 13 which converts to hexadecimal character "D".  The "0111" value of 7 is hexadecimal character "7".

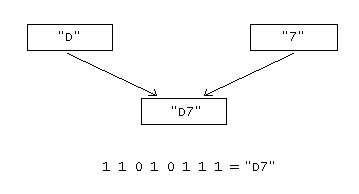

  3. Concatenate the 2 hexadecimal characters in the same order of occurrence as their 4-bits in the bytes.

    Example.  Concatenate the hexadecimal character "D" and "7" to get the final result "D7".

The above conversion is repeated for every bytes in the document.  The resulting document should only contain an even number count of characters, and should only contain characters in the hexadecimal character set.  For example when encoding the string "The 5 men" , the byte stream would be as follow (shaded):

Text T h e SP 5 SP m e n
Decimal 84 104 101 32 53 32 109 101 110
Binary 0101 0100 0110 1000 0110 0101 0010 0000 0011 0101 0010 0000 0110 1101 0110 0101 0110 1110
Hex Characters "54" "68" "65" "20" "35" "20" "6D" "65" "6E"
Byte Stream 0x35 0x34 0x36 0x38 0x36 0x35 0x32 0x30 0x33 0x35 0x32 0x30 0x36 0x44 0x36 0x35 0x36 0x45


The resulting encoded text for "The 5 men" would be "5468652035204D654F".  The result is not case sensitive and the above result may also be "5468652035204d654f".  However, when both upper or lower case results are decoded, they must return the original text in the correct case.  Note that for every byte in the original text, two bytes are created in the encoded text.  This 100 percent expansion rate is the biggest drawback in using the hexadecimal encoding mechanism.
