To remove a semantic rule from a data segment, take the following steps:
Expand the selected data segment node.
Expand the node "Semantic Rules" nested under the data segment node.
Highlight the semantic rule, and then right click.
In the popup menu, select the option "Remove Semantic Rule".
The following steps will demonstrates how to remove a semantic rule from a data
segment reference. As an example, we will remove the semantic rule
"LineItemID'EQ'ITEM01:USAGE:2:" from the data segment MEA
(Measurements), which as an ordinal number 22 in the ASC/X12 Transaction Set
850.

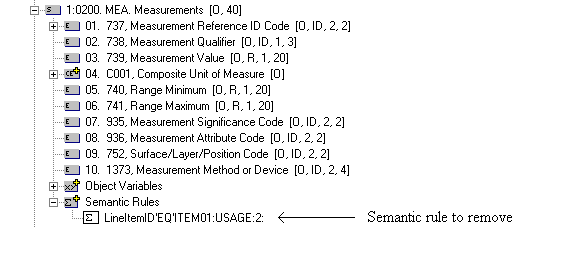

Expand the "Semantic Rules" branch under the data segment reference
from which the semantic rule is to be removed. Then find the semantic
rule from the list.

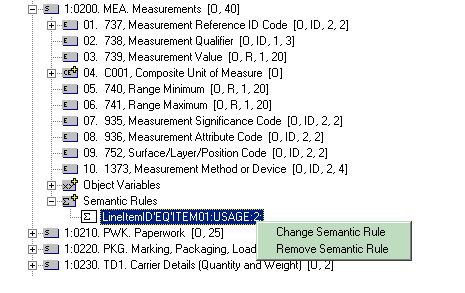

Highlight the semantic rule name, and then right click to display the popup
menu. In the example, the semantic rule
"LineItemID'EQ'ITEM01:USAGE:2:" has been selected.

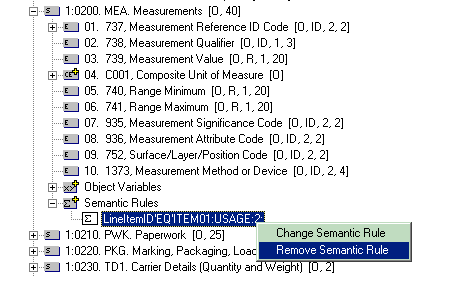

Highlight "Remove Semantic Rule" at the popup menu option, and then
click to select the option.

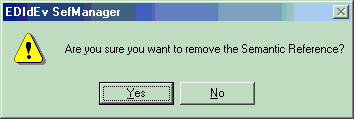

A dialog-box will be displayed to confirm if the semantic rule should really be
removed. NOTE: Removing a semantic rule cannot be undone once it
has been successfully removed.
Click the button "Yes" to remove the semantic rule. Otherwise
click on "No".

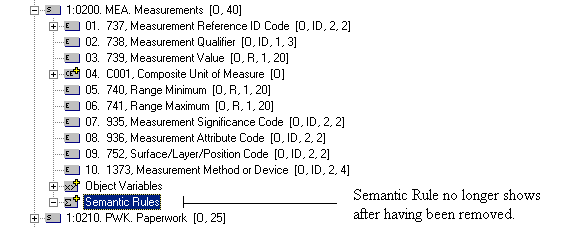

If the semantic rule was successfully removed, it should no longer be displayed
in the "Semantic Rules" list. In our example, the semantic rule
"LineItemID'EQ'ITEM01:USAGE:2:" should no longer be listed.
The Semantic Rule Table should also no longer have the semantic rule listed.
