Framework EDI Reference. SEFManager Utility
Add a Semantic Rule to a Composite Element

To add a semantic rule to a composite element, take the following steps:

1. Highlight the selected composite element and then right click.
2. In the popup menu, select "Add Semantic Rule".
3. In the dialog box, specify the condition and the action of the semantic rule.

The following steps will demonstrate how to add a semantic rule to a composite element reference.  As an example, we will add the semantic rule (see below) to the composite element C001 (Composite Unit Of Measure) under the data segment reference MEA (Measurements).  The composite element C001 has an ordinal number 4 in the segment reference MEA, which in turn, has an ordinal number 22 in the ASC/X12 Transaction Set 850.

If data element 353 at BEG0200 is equal to "00" then composite element C001 at MEA2000 must be used

The semantic rule SEF syntax is:

PurposeCode'EQ'00:USAGE:2:

Where:

• "PurposeCode'EQ'00:USAGE:2:" is the condition clause.
• "USAGE" is the type of modification.
• "2" is the setting value.
• "PurposeCode" is the object variable attached to data element 353 at BEG0200.  See Add Object Variable to a Data Element.

For more on how to determine the SEF semantic rule syntax please refer to Appendix B: Creating a Semantic Rule Syntax .

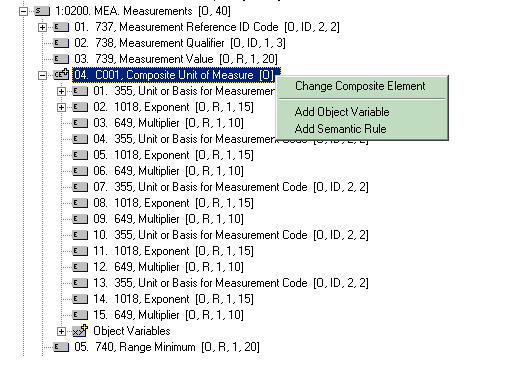

1. Highlight and right click on the composite element reference where the semantic rule is to be added.

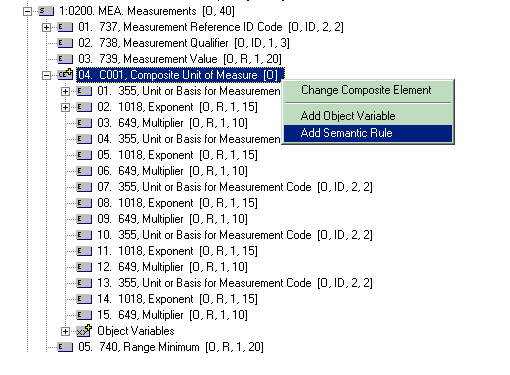

2. From the popup menu select "Add Semantic Rule".

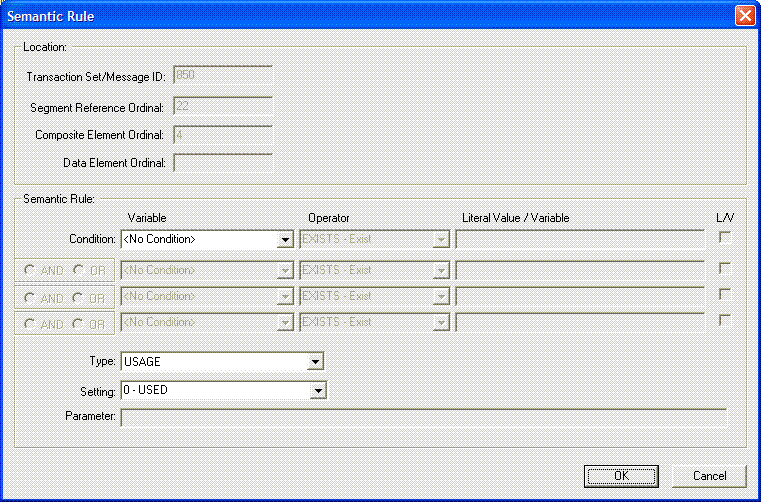

3. The following dialog box will show.



   Location.  The Transaction Set/Message ID field displays the ASC/X12 Transaction Set or UN/EDIFACT Message of the data segment reference.  The Segment Reference Ordinal field displays the ordinal number of the data segment reference containing the composite element.  The Composite Element Ordinal field displays the ordinal number of the composite element to which the semantic rule will be added.  In the example shown, the semantic rule is being added to the composite element at ordinal 4 in the data segment reference, which has an ordinal 22 in the ASC/X12 Transaction Set 850.

   The following fields to enter are:

   • Condition - Three fields make up the conditional clause of the semantic rule.  They are:
     • Variable - Enter into this field the object variable name of the semantic object whose value is to be tested.  The drop down combo box will only list the object variables available for selection.  If the expected object variable is not in the list, it would have to be added beforehand.  For additional information on how to add an object variable, see the topic Object Variables.  If there is no condition for the semantic rule, select the item <No Condition>.  This means that the action clause of this semantic rule will always be executed whenever the object is encountered.
     • Operator - For the conditional clause, the following operators are available and are listed in the combo box for selection:
       • EQ - Equal
       • NE - Not Equal
       • GT - Greater Than
       • GE - Greater Than or Equal
       • LT - Less Than
       • LE - Less Than or Equal
       • EXISTS - Exist
       • NEXIST - Not Exist
     • Literal Value / Variable - Enter into this field the following:
       • A literal value that will be compared against the value of the object variable specified above.  Quotes should not be included unless it is part of the value.
       • An object variable whose value is compared to the value of the previous object variable specified above.
     • L/V (Check box) - This check box indicates if the string entered in the edit box "Literal Value / Variable" above is either a literal value or an object variable.  If unchecked, the string is accepted as a literal value.  If checked, the string is accepted as an object variable.  A list of existing object variables are displayed for selection.

     There is no limit to the number of conditions a semantic rule can contain.  The SefManager, however, limits the number of conditions to 4.  Each condition is linked to the other by a logical AND / OR operator, and all conditions must result to TRUE for the action to be executed.



   • Type - Enter into this field the type of modification to make should the conditional clause result to TRUE.  These are:
     • APPVALUE - Specifies the Value List to reference if the conditional clause is true.
     • COMEXIT - Specifies the ActiveX/COM interface and the method to execute if the conditional clause is true.
     • LOCALCODE - Specifies the number of the code set to use if the conditional clause is true.
     • USAGE - Specifies the user requirement of the object if the conditional clause is true.



   • Setting/Program.Function - Enter into this field the value to modify the object depending on the Type selected above:
     • For APPVALUE, a list of all the list in the Value Lists table is displayed in the combo-box for selection.
     • For COMEXIT, enter the ActiveX/COM program ID and method to execute.  It must have the  following syntax:
       • <program identifier>.<method name>.

       Example, "FrediTester.Sample.Test".  Where "FrediTester.Sample" is the program ID of the interface and "Test" is the method to execute in the interface.



     • For LOCALCODE, enter the number of the code set.
     • For USAGE, the following is displayed in the combo-box for selection:
       • "0 - USED"
       • "1 - NOT USED"
       • "2 - MUST USE"
       • "3 - RECOMMENDED"
       • "4 - NOT RECOMMENDED"



   • Parameter - This field applies only if the modification Type is COMEXIT.  If there is no parameter to pass to the method then leave this field blank.  Otherwise, enter into this field the string parameter to pass to the ActiveX/COM method for execution.  The value entered in this field is passed as a single string to the method.  For example, if the value 1,2,3 was entered, then the single string "1,2,3" is passed to the method.  One or more object variables can be embedded within the parameter string if the variable names are preceded with the character '@'.  In this case, the variable name in the string is replaced with the value of the object variable before passing the string to the method.  For example, if the parameter has the following string:

     1,2,@NAME,5

     If the object variable NAME has the value "John Smith", then the string parameter is passed to the method as:

     1,2,John Smith,5

     Please note that the ActiveX/COM method must be able to accept a single string as an input parameter.

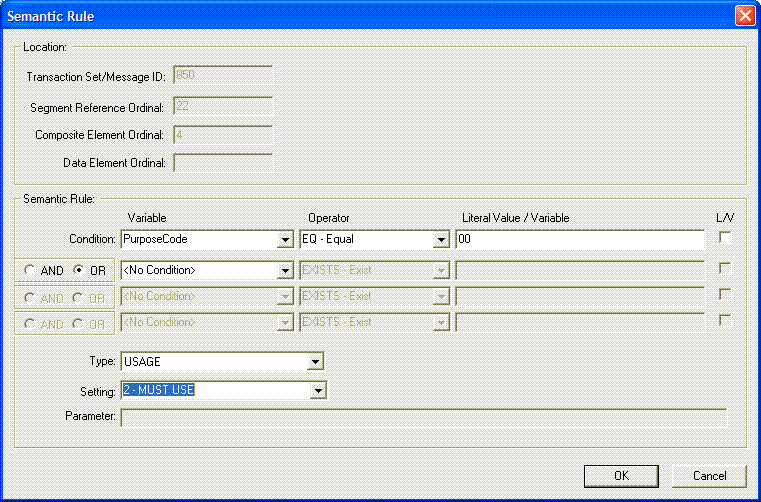

4. In the example scenario, enter the following data in their respective fields, and then click "OK" to accept the entries.



   • Condition: PurposeCode'EQ'00:USAGE:2:
   • Type: USAGE
   • Setting: 2

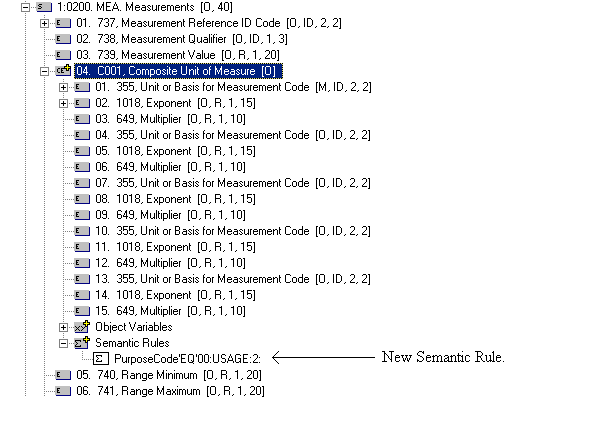

5. If the semantic rule was successfully added, it will be displayed under the branch "Semantic Rules" under the composite element reference.  In this example, the semantic rule "PurposeCode'EQ'00:USAGE:2:", which has just been added, will show in addition with the other existing semantic rules that were assigned to the same location.

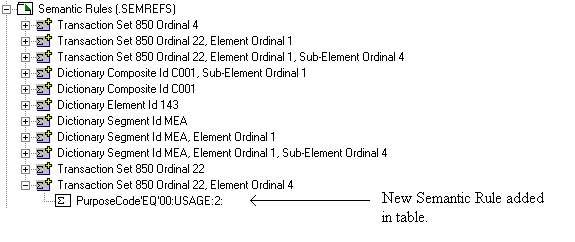

6. The Semantic Rule Table will also be updated with the new semantic rule that was just added.
